Best Dove Tail Router Bits

OVERVIEW
Dovetail joints are one of the strongest joiner joints in woodworking. Dovetail joints are great for the construction of boxes, drawers, chests, and fine casework.
Migiwata Dovetail router bits feature a quality piece of carbide that stays sharp and cuts cleanly, even after many uses.
Whiteside offers a 5pc set of quality dovetail bits to fit a wide range of popular dovetailing jigs to meet you diverse joining needs in woodworking.

TECHNICAL DETAILS:
Material: solid hardened steel body and carbide tipped cutters
Color: yellow coating and silver metal
Shank: 1/2”straight shank

WHAT’S INCLUDED:
14° 1/2”* 3/8” dovetail router bit x 1pc
14° 1/2”* 1/2” dovetail router bit x 1pc
14° 1/2”* 5/8” dovetail router bit x 1pc
14° 1/2”* 3/4” dovetail router bit x 1pc
8° 1/2”* 1/4” dovetail router bit x 1pc

SHOP TIPS:
Two passes are recommended when routing dovetails with a template. Check that the dovetails have been cut through completely and smoothly before removing the workpiece. For even easier routing and less stress on your dovetail bit, run the first pass with a straight bit. Use a dovetail on your router table equipped with a fence to achieve difficult chamfer angles.

SAFETY TIPS:
If a dovetail bit jams while working, adjust the position of the bit in the collet and make sure the cutting depth is correct. Do not lift the router out of the template.

Product Description

Amazon.com Ideal for woodworking, furniture and cabinet making, the Porter Cable 4216 12-inch dovetail jig kit enables cutting a wide variety of joinery for drawers, boxes, and furniture. This package includes a template 4211 for half-blind, rabbeted half-blind and sliding dovetails, the 4213 template for through dovetails and box joints, and the 4215 template for miniature through, miniature half-blind dovetails, and miniature box joints. Durable, single-piece steel base design requires no assembly (view larger). Able to accommodate stock from 1/4 to 1-1/8 inches thick, this jig’s heavy-duty cam-type clamps with sandpaper-backed locking bars provide a firm grip of wood. On-board instructions provide clear user guidance for the various applications and machined aluminum templates provide superior cutting accuracy and long-term durability. Its router bit depth gauge allows users to set bit depths without measuring and its durable, single-piece steel base design requires no assembly and allows clamping or bolting directly to the work bench. Warranty This Porter-Cable tool is backed by three-year limited warranty covering any defects due to faulty materials or workmanship (from the date of purchase). It’s also covered by Porter-Cable’s one-year free service contract, where Porter-Cable will maintain the tool and replace worn parts caused by normal use–for free. What’s in the Box Porter-Cable 4216 deluxe dovetail jig combination kit with jig base; three templates (4211, 4213, and 4215); four router bits (43776PC, 43743PC, 43014PC, and 43777PC); four template guides (42037, 42040, 42046, and 42054); two lock nuts; wrench; operating instructions On-board instructions provide clear guidance for various applications (router not included; view larger). 4216 Deluxe Dovetail Jig Combination Kit At a Glance: Includes 12-inch dovetail jig plus three templates Template alignment lines and router bit depth gauges allow for quick,

Amazon.com

Ideal for woodworking, furniture and cabinet making, the Porter Cable 4216 12-inch dovetail jig kit enables cutting a wide variety of joinery for drawers, boxes, and furniture. This package includes a template 4211 for half-blind, rabbeted half-blind and sliding dovetails, the 4213 template for through dovetails and box joints, and the 4215 template for miniature through, miniature half-blind dovetails, and miniature box joints.

Durable, single-piece steel base design requires no assembly (view larger).

Able to accommodate stock from 1/4 to 1-1/8 inches thick, this jig’s heavy-duty cam-type clamps with sandpaper-backed locking bars provide a firm grip of wood. On-board instructions provide clear user guidance for the various applications and machined aluminum templates provide superior cutting accuracy and long-term durability. Its router bit depth gauge allows users to set bit depths without measuring and its durable, single-piece steel base design requires no assembly and allows clamping or bolting directly to the work bench.

Warranty

This Porter-Cable tool is backed by three-year limited warranty covering any defects due to faulty materials or workmanship (from the date of purchase). It’s also covered by Porter-Cable’s one-year free service contract, where Porter-Cable will maintain the tool and replace worn parts caused by normal use–for free.

What’s in the Box

Porter-Cable 4216 deluxe dovetail jig combination kit with jig base; three templates (4211, 4213, and 4215); four router bits (43776PC, 43743PC, 43014PC, and 43777PC); four template guides (42037, 42040, 42046, and 42054); two lock nuts; wrench; operating instructions

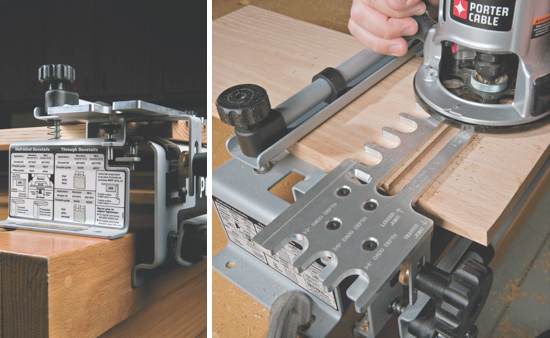

On-board instructions provide clear guidance for various applications (router not included; view larger).

4216 Deluxe Dovetail Jig Combination Kit At a Glance: Includes 12-inch dovetail jig plus three templates Template alignment lines and router bit depth gauges allow for quick, easy set-up Durable, single-piece steel base design requires no assembly Clamps or bolts directly to work bench Accommodates stock from 1/4- to 1-1/8-inch thick Three-year limited warranty; one-year free service

See all Product description

General Tools 861 EZ Pro Dovetailer 2 Dovetail Jig is the all-in-one answer to producing strong, precise dovetail joints with ease right out-of-the-box. Using only the jig and a handheld or table router, both professionals and novices can make half-blind or through dovetail joints including box joints. The self-aligning design ensures that both ends of the dovetail joint match up evenly every time, and new table router control knobs promise comfortable and accurate use. THE DOVETAILER is fully portable, includes a 1/2″ dovetail router bit and features sturdy machined aluminum construction along with integrated clamps for precise attachment to the work piece. It is perfect for furniture building, cabinet making and other carpentry projects.

GENERAL TOOLS – THE PRECISE TOOL FOR DOING THE JOB EXACTLY RIGHT. Offering over 1,000 tools, we’re proud to provide tradesmen, craftsmen and DIYers around the world with a broad range of affordable, specific-purpose mechanical hand tools and precision measuring and inspection tools.

For inquiries, please contact our Customer Service Department at 212-431-6100. We strive to provide our customers with 100% satisfaction.

WORK SMARTER, MEASURE BETTER & BE MORE PRODUCTIVE WITH GENERAL TOOLS

Product Description

Precision woodworking is readily at your fingertips with the Stalwart 24-piece router bit set. Featuring 15 different bits with ¼ inch shaft bits that fit all routers, this set is ideal for the person just staring out or the experienced pro.

IMPORTANT:
Avoid buying counterfeit products and transacting with unauthorized sellers. Look for our logo on the packaging for every one of our products. Stalwart is committed to providing the consumer with the absolute best price and value on all of our products, which we ensure by applying a rigorous Quality Control process. Stalwart a registered trademark protected by U.S. Trademark law and will be vigorously defended.

From the Manufacturer

This is a great set for the woodworker just starting out or anyone needing a commercial quality set of bits. This same set is being sold by popular catalogs and online retailers for a lot more money. These yellow bits do cut well and are a great value.

Specification:
Material: Carbide
Shank Diameter: 1/4″
Cutting Angle: 10°
Cutting Length: 1/2”
Cutting Depth: 1/2”
Overall Length: 1.95”
Bearing Diameter: 1/2”
Color: Black

Specifications:
Material: Carbide
Shank Diameter: 1/4″
Cutting Length: 9/16”
Cutting Depth: 5/8”
Overall Length: 2-1/2”
Bearing Diameter: 1/2”
Color: Yellow

The package include:
2pc Dovetail Joint Router Bit

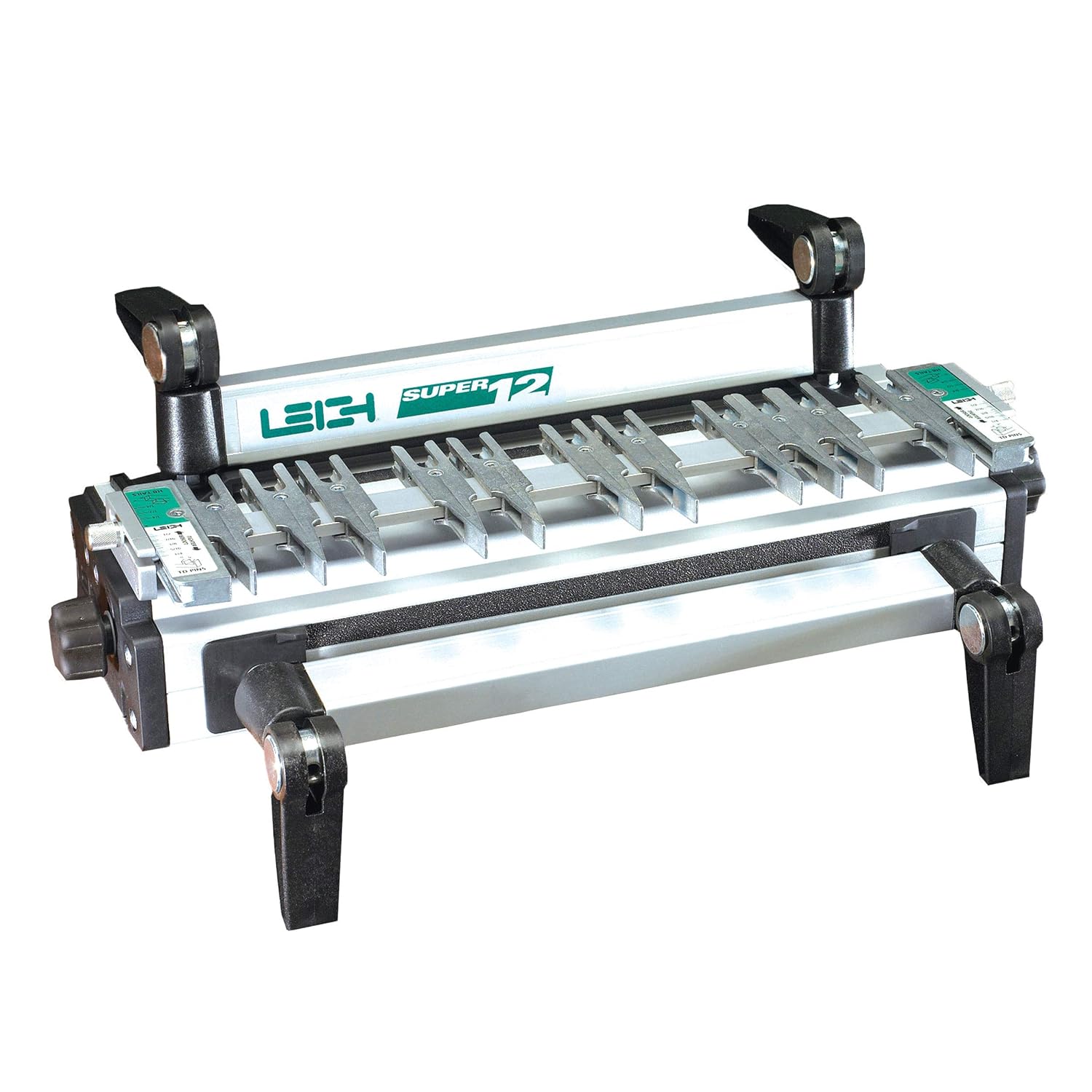

Super jigs offer extraordinary joint making capability at exceptional price points. No other jigs equal the versatility and precision of Leigh super jigs. Variably spaced through and half-blind dovetails are standard on all super jigs. Infinitely adjustable one-piece fingers are easily positioned for any joint pattern, guaranteeing a half pin at each edge of the joint, regardless of board width. The cross-cut fence fits on the dovetail finger assembly to become a sliding dovetail template. Rout half-blind pin boards and tail boards at the same time using the included two-function spacer to offset the tail board and rout complete joints in one pass with the super jigs, you’re not limited to one bit and one depth of cut. Just select any of the five half-blind bits available and rout half-blind joints in the depth that best suits your project. The finger assembly can also produce two sizes of box joints, 5/16″ and 5/8″. The amazing joint making capability of super jigs is due in part to the revolutionary new Leigh E-bush. Very precise adjustments for fit are made easily with the E-bush. Settings are changed using the included pin wrench and the uniquely shaped locking nut makes tightening the E-bush a snap. Markings clearly indicate the adjustment direction necessary for the desired change. A simple twist of the E-bush changes its active diameter which in turn changes the fit of finger joints and half-blind dovetails. Easy to use cam action clamps and aluminum clamp bars hold the work piece securely against non-slip material applied to each clamping surface. Includes: 1/2″-8 degree dovetail bit, 1/2″-14 degree dovetail bit, 5/16″ straight bit, 1/2″ to 8mm collet reducer, sliding dovetail fence, half-blind bridge piece material, E-bush, fully illustrated user guide and instructional DVD.

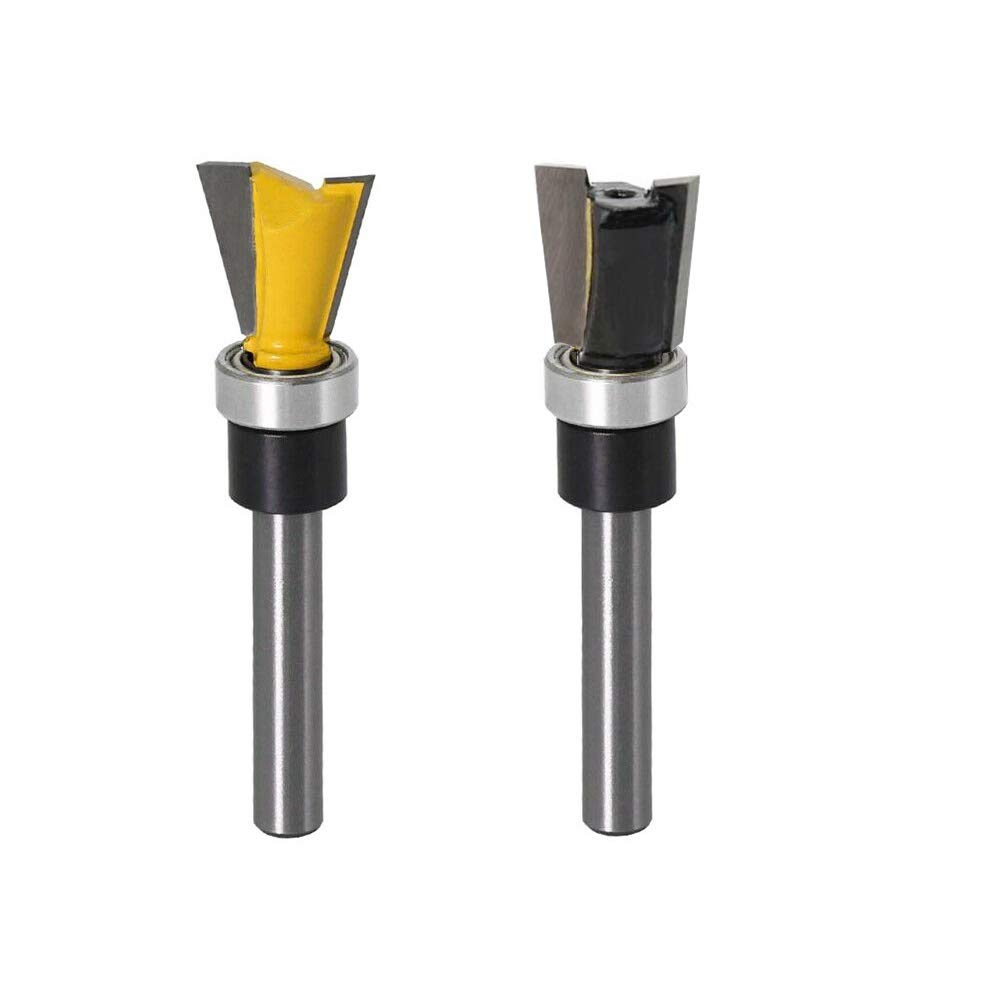

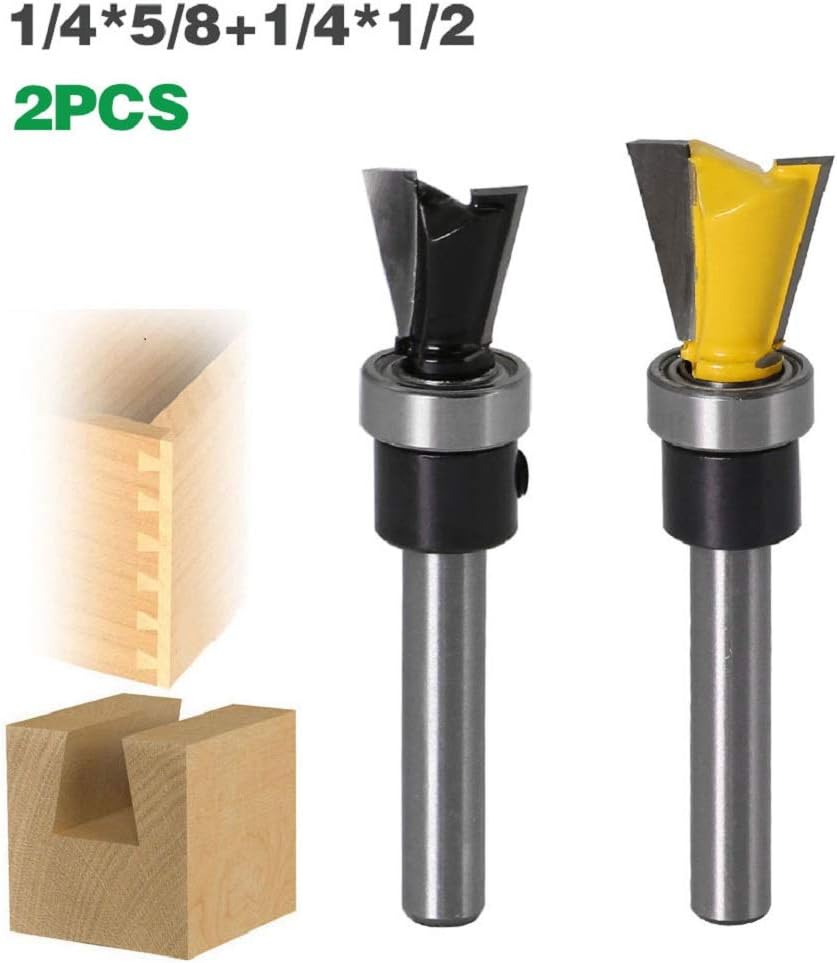

Eyech 2pc 1/4 Inch Shank Carbide Dovetail Joint Router Bit Swallowtail Knife Woodworking Cutter

 Specification:

Material: Carbide

Shank Diameter: 1/4″

Cutting Angle: 10°

Cutting Length: 1/2”

Cutting Depth: 1/2”

Overall Length: 1.95”

Bearing Diameter: 1/2”

 Color: Black

 Specifications:

Material: Carbide

Shank Diameter: 1/4″

Cutting Length: 9/16”

Cutting Depth: 5/8”

Overall Length: 2-1/2”

Bearing Diameter: 1/2”

 Color: Yellow

 Features:

 -Two flutes, 1/4″ shank with shank mounted bearing guide.

-Highly durable, can be utilized for the most rigorous industrial applications.

-Precise, smooth and detailed cuts, perfect for projects of any level of complexity.

-Outstanding abrasion resistance and high strength for longer cutting life.

-C3 micro-grain tungsten cutters , cutting sharp, smooth rotation, light operation

-Suitable for wood, MDF, particle board, plywood compact panel

-Great for drawers and jewelry boxes, shaker furniture and shadow boxes

The package include:

2pc Dovetail Joint Router Bit

Whiteside Machine Company has been in the router bit business for over 30 years providing customer with quality products while at the same time striving to achieve complete customer satisfaction. Several woodworking magazines have tested Whiteside versus the competition and selected Whiteside as the winner for best router bits available in the market. Whiteside Machine Company was founded in 1970 as a general purpose machine shop in the basement of Bill & Bobbie Whiteside’s home. Located in Western North Carolina near the furniture manufacturing town of Hickory, the company was often involved in making repairs or special parts for the furniture and woodworking field. A strong commitment to customer problem-solving, a can-do attitude, and innovative ideas, along with a growing core of dedicated employees, helped the business evolve into a manufacturer of woodworking equipment and tooling. Primarily through repeat business and referrals, the tooling business continued to grow to meet a demand for quality production router bits as well as custom application tooling. Today, Whiteside Machine occupies a 40,000 sq. ft. manufacturing facility and produces a complete line of solid carbide and carbide tipped router bits. Whiteside’s quality, innovation, and customer commitment is still present in our superb product line, in the design of custom tooling to fill special customer requirements, and in the development of special machinery and tooling for our own manufacturing use. As always, Whiteside Machine is continuously striving to improve our product through new technology, improved production techniques, and ongoing research and development efforts; along with rigid quality control, vital customer feedback and extensive field testing. Whiteside Machine Company.

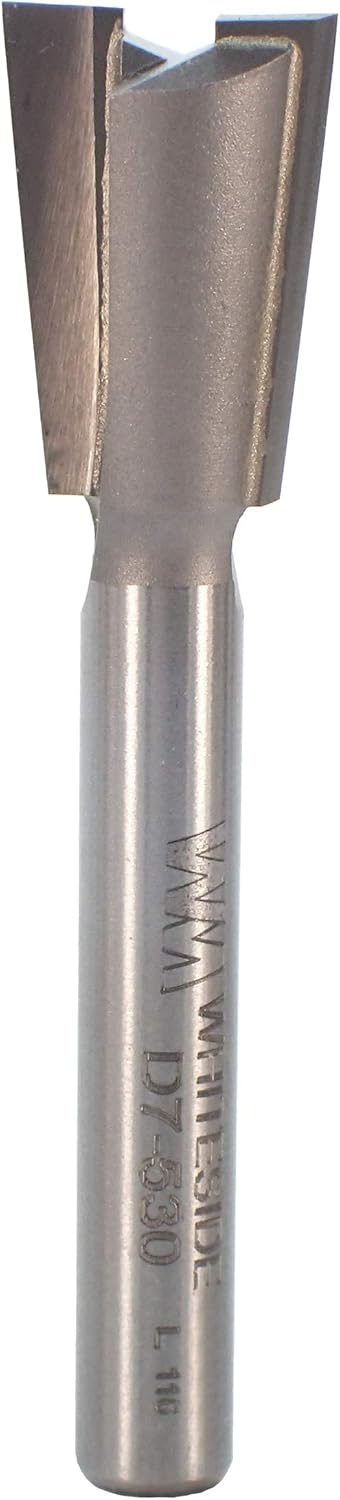

This dovetail bit has a cutting diameter of 3/4″, and angle of 14° and a cutting height of 25/32″. The shank diameter is 1/2″ The dovetail is probably the most recognizable of all woodworking joints. A dovetail joint is self-aligning and interlocking. There are numerous versions of the dovetail joint, including half blind dovetails, through dovetails, mitered dovetails and sliding dovetails. All of these variations are common in casework and drawer construction. A single dovetail bit can make almost any kind of dovetail, depending on the desired size. You’ll need a jig to make most dovetail joints, as well as a guide bushing for your router. Check the instructions with your dovetail jig to select a bit with the appropriate angle, which will usually be somewhere between 7 and 14 degrees.
